nspired by the iconic lines of the best-selling SG760, the new ilGoblin 420 brings the same stunning appeal to the 420 class.
Performance, style, innovation.

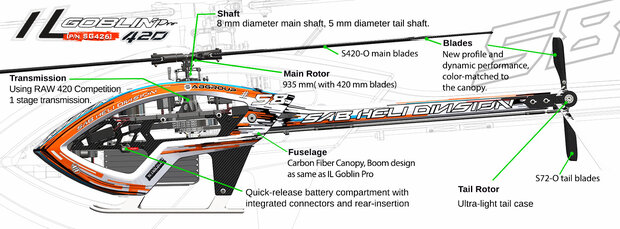

- Main rotor diameter 935mm (with 420mm blades)
- Main blade length 380 to 420mm
- Tail rotor diameter 194mm (with 72mm tail blades)
- Tail blade length 60 to 72mm
- Micro size cyclic servos (23mm)
- Mini size tail servo (35mm)
- Maximum battery size: 140x40x50mm (max)
- Recommended battery: 6s 2200/2700 mAh
- Recommended motor: 3020 – 3215 – 3220
- Recommended motor KV: 900-1000 KV
- Recommended battery weight: 350-420 grams
- Recommended ESC: 60A (70-80A is required only for hard 3D flight with temperatures above 30°C)
- Tail rotor ratio 4:1

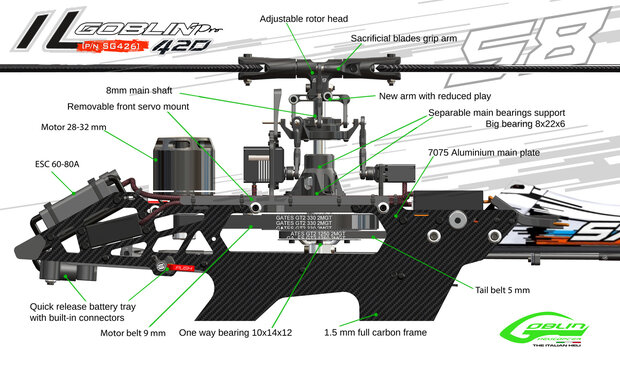

- 8mm main shaft
- 5mm tail shaft
ilGoblin 420 main features:
- Quick release battery tray with integrated connectors
- Zytel HTN resin blade grip arms (sacrificial)
- It is not necessary to remove the canopy to replace the batteries.
- Main ratio 1:5/6
- Tail ratio 4:1
