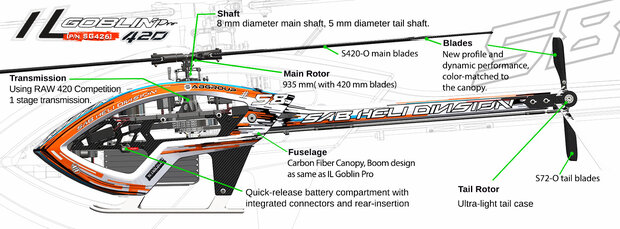

Main rotor diameter : 935mm (with 420mm blades)
Main blade length : 380 to 420mm
Tail rotor diameter : 194mm (with 72mm tail blades)
Tail blade length : 60 to 72mm
Cyclic Servos : Micro servo (23mm)
Tail Servo : Mini servo (35mm)
Maximum battery size : 140x40x50mm (max)
Recommended battery : 6s 2200/2700 mAh
Recommended motor size : 3020 – 3215 – 3220
Recommended motor KV : 900-1000 KV
Recommended battery weight : 350-420 grams
Recommended ESC : 60A (70-80A is required only for hard 3D flight with temperatures above 30°C)
Tail rotor ratio : 4:1
Main shaft : 8mm , Tail shaft : 5mm
