Xnova XTS 4530-525kv 4+5YY (1,5mm thick Wire)
Xnova XTS 4530-525kv 4+5YY (1,5mm thick Wire)
0 Review | Review toevoegen
Slots & Poles 12n10p Winding T 4+5 YY with 1.5mm thick wire rpm/V 525 Volt (V) 10 | 20 | 30 | 40 Io(A)...

Artikelnummer

XNM-LN-4530-525-A-0016

Verzendkosten

€ 8,75

€ 499,00
Prijs per stuk

Voorraad :

Het aantal Gearpoints dat je voor dit product ontvangt is 499
Aantal:
Bestellen

Slots & Poles 12n10p
Winding T 4+5 YY with 1.5mm thick wire
rpm/V 525
Volt (V) 10 | 20 | 30 | 40
Io(A) 1.4 | 2 | 2.8 | 3.5
Rm (mohm) 12 | 12 | 12 | 12
Weight (without connector) (g) 535
Body Length (no shaft) mm 60.5
Diameter (mm) 55.7

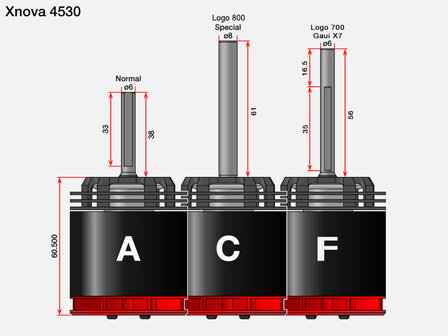

Shaft Length (mm) (Details pictures) | 38 | 27
Shaft Dia. (mm) 6 | 8 |10
Mounting Holes CTC Distance (mm) 30
Mounting Screw 4x07
Max Eff. Curr. 34.16 | 57.74 | 83.67 | 108.01
Max Eff. 91.80 | 93.07 | 93.31 | 93.52
Kt (Nm/A 0.0199
Km (Nm/sqrt(w)) 0.1816
Max Continuous Power(Watts) 5600
Peak Continuous Power(Watts) (5 sec) 11000 (2sec)
Max cont. current (A) 150
